Advanced Furnace

From Unofficial Stationeers Wiki

This page contains changes which are not marked for translation.


Kit (Advanced Furnace)
Constructing Options Advanced Furnace
Properties
Stacks No
Recipes
Electronics Printer (Tier Two) 5g Gold, 25g Copper, 30g Steel, 15g Electrum, 8g Solder, 6g Silicon
Logic
Item Hash -616758353
Item Name ItemKitAdvancedFurnace
Logic Classes
SlotClass.None
SortingClass.Kits
Advanced Furnace
Operation
Power Usage 100W
Prefab Hash 545937711
Prefab Name StructureAdvancedFurnace
Construction
Placed with Kit (Advanced Furnace)
Placed on Small Grid
Stage 1
Next Stage Construction
Constructed with item 1 x Electronic Parts
Deconstruction
Deconstructed with Hand Drill
Item received Kit (Advanced Furnace)
Stage 2
Next Stage Construction
Constructed with tool Welding Torch
Constructed with item 5 x Steel Sheets
Deconstruction
Deconstructed with Wire Cutters
Item received 1 x Electronic Parts
Stage 3
Next Stage Construction
Constructed with tool Screwdriver
Deconstruction
Deconstructed with Angle Grinder
Item received 5 x Steel Sheets
Stage 4
Deconstruction
Deconstructed with Hand Drill


Description[edit]

The advanced furnace comes with integrated inlet and outlet pumps for controlling the unit's internal pressure.
- Stationpedia

The Advanced Furnace is used to create advanced alloys, but can be used to create basic alloys as well. It lends itself to automation. The Maximum pressure for the furnace is 60 MPa before the furnace will,in short order, explode. Adding Hydrocarbons, IE coal, will increase the pressure. Contains two embedded volume pumps to control flow in and out, in order to use them, the furnace must be powered, and setting both to zero will put the furnace in a state of quiescence, but the furnace will slowly lose pressure and temperature. The capacity of the furnace is in excess of 5kg of materials so it is possible to make a full 500g ingot of an advanced alloy in one go.

In the early game, a regular Furnace will be easier to make and operate.

Recipes[edit]

Ingot Input Pressure (Pa) Temperature (K) Temperature (°C)
Min Max Min Max Min Max
1
Astroloy
2
Steel
1
Copper
1
Cobalt
30 MPa 40 MPa 1kK 100kK 727°C 99727°C
1
Hastelloy
2
Silver
1
Nickel
1
Cobalt
25 MPa 30 MPa 950K 1kK 677°C 727°C
1
Inconel
2
Gold
1
Nickel
1
Steel
23.5 MPa 24 MPa 600K 100kK 327°C 99727°C
1
Waspaloy
2
Lead
1
Silver
1
Nickel
50 MPa 100 MPa 400K 800K 127°C 527°C
1
Stellite
2
Silicon
1
Silver
1
Cobalt
10 MPa 20 MPa 1.8kK 100kK 1527°C 99727°C
Update 0.2.2728.13232 - Fri 15/01/2021 /Recipes
NOTE: January StationEARS update reduced the yields from smelting super alloys. Recipes will now return only 1 ingot.

See Advanced Furnace/AllRecipes for a complete list


Data Network Properties[edit]

These are all Data Network properties of this device.

Data Parameters[edit]

These are all parameters that can be written with a Logic Writer, Batch Writer, or Integrated Circuit (IC10), and can be read with a Logic Reader, Batch Reader, or Integrated Circuit (IC10).

Click here to see/hide all the data network properties
Parameter Name Data Type Access Value Description
Power Boolean
Read
0 Unpowered Can be read to return if the Advanced Furnace is correctly powered or not, set via the power system, return 1 if powered and 0 if not
1 Powered
Open Integer
Read Write
1 if device is open, otherwise 0
Mode Integer
Read Write
0 Invalid The Advanced Furnace's smelting result.
1 Valid
Error Boolean
Read
0

1 if device is in error state, otherwise 0
1 Error
Pressure Float
Read
The current pressure reading of the Advanced Furnace
Temperature Integer
Read
The current temperature reading of the Advanced Furnace
Activate Integer
Read Write
Activates the Advanced Furnace when set to 1. Deactivates when set to 0.
Lock Boolean
Read Write
0 Unlocked Disable manual operation of the Advanced Furnace.
1 Locked
Setting Integer
Read Write
A variable setting that can be read or written.
Reagents Integer
Read
Total number of reagents recorded by the Advanced Furnace
RatioOxygen Float
Read
0.0 to 1.0 The ratio of Oxygen in device atmosphere
RatioCarbonDioxide Float
Read
0.0 to 1.0 The ratio of Carbon Dioxide in device atmosphere
RatioNitrogen Float
Read
0.0 to 1.0 The ratio of Nitrogen in device atmosphere
RatioPollutant Float
Read
0.0 to 1.0 The ratio of Pollutant in device atmosphere
RatioVolatiles Float
Read
0.0 to 1.0 The ratio of Volatiles in device atmosphere
RatioWater Float
Read
0.0 to 1.0 The ratio of Water in device atmosphere
Maximum Float
Read
Maximum setting of the Advanced Furnace
Ratio Float
Read
0.0 to 1.0 Context specific value depending on device, 0 to 1 based ratio
On Boolean
Read Write
0 Off The current state of the Advanced Furnace.
1 On
RequiredPower Integer
Read
Idle operating power quantity, does not necessarily include extra demand power
RecipeHash Integer
Read
Current hash of the recipe the Advanced Furnace is set to produce
ClearMemory Integer
Write
When set to 1, clears the counter memory (e.g. ExportCount). Will set itself back to 0 when actioned
ExportCount Integer
Read
How many items exported since last ClearMemory
ImportCount Integer
Read
How many items imported since last ClearMemory
TotalMoles Float
Read
Returns the total moles of the Advanced Furnace
RatioNitrousOxide Float
Read
0.0 to 1.0 The ratio of Nitrous Oxide in device atmosphere
PrefabHash Integer
Read
The hash of the structure
SettingInput Integer
Read Write
The input setting for the Advanced Furnace
SettingOutput Integer
Read Write
The output setting for the Advanced Furnace
Combustion Boolean
Read
0 or 1 Assess if the atmosphere is on fire. Returns 1 if atmosphere is on fire, 0 if not.
RatioLiquidNitrogen Float
Read
0.0 to 1.0 The ratio of Liquid Nitrogen in device atmosphere
RatioLiquidOxygen Float
Read
0.0 to 1.0 The ratio of Liquid Oxygen in device's Atmosphere
RatioLiquidVolatiles Float
Read
0.0 to 1.0 The ratio of Liquid Volatiles in device's Atmosphere
RatioSteam Float
Read
0.0 to 1.0 The ratio of Steam in device's Atmosphere
RatioLiquidCarbonDioxide Float
Read
0.0 to 1.0 The ratio of Liquid Carbon Dioxide in device's Atmosphere
RatioLiquidPollutant Float
Read
0.0 to 1.0 The ratio of Liquid Pollutant in device's Atmosphere
RatioLiquidNitrousOxide Float
Read
0.0 to 1.0 The ratio of Liquid Nitrous Oxide in device's Atmosphere
ReferenceId Integer
Read
Unique Reference Identifier for this object
RatioHydrogen Float
Read
0.0 to 1.0 DEPRECATED
RatioLiquidHydrogen Float
Read
0.0 to 1.0 DEPRECATED
RatioPollutedWater Float
Read
0.0 to 1.0 The ratio of polluted water in device atmosphere
NameHash Integer
Read
Provides the hash value for the name of the object as a 32 bit integer.


Data Slots[edit]

These are all parameters, that can be read with a Slots Reader. The outputs are listed in the order a Slots Reader's "VAR" setting cycles through them.

Number Name Description
0? Import Import slot.
1? Export Export slot.


Name Data Type Description
OccupantHash
Occupied Boolean Returns whether the slot occupied. (0 for no, 1 for yes).
PrefabHash
Quantity
Class
Damage
MaxQuantity

Usage[edit]

While it is possible to operate the advanced furnace similar to a regular furnace (add fuel, ignite, add ore), the two most common setups for advanced furnaces are:

  • ice only smelting
  • fuel mixing
  • hot and cold mixing

Ice only smelting[edit]

In this setup ice is fed into the input slot of the furnace prior to loading ores for smelting. [1]

Alloy Ingredients Chunks Temperature Pressure
50
Stellite
50
Silver Ore
50
Cobalt Ore
100
Silicon Ore
2
Volatiles
1
Oxite
1.82 kK 13.6 MPa
50
Inconel
100
Gold Ore
50
Nickel Ore
50
Steel Ingot
13
Volatiles
6
Oxite
1.78 kK 24.2 MPa +++
50
Astroloy
100
Steel Ingot
50
Copper Ore
50
Cobalt Ore
18
Volatiles
9
Oxite
1.92 kK 33 MPa
50
Hastelloy
100
Silver Ore
50
Nickel Ore
50
Cobalt Ore
5
Volatiles
86
Oxite ^^^
997 K 27.3 MPa
50
Waspaloy
100
Lead Ore
50
Silver Ore
50
Nickel Ore
7
Volatiles
300
Oxite ^^^
691 K 50.2 MPa

Note that at least one gas pipe must be connected to both the input and output gas lines to avoid error conditions.

+++ For Inconel the mixture pressure will overshoot the range slightly, either make the alloy when the pressure rises into the range, or a short wait will be necessary in order for the pressure to drop back into range.

^^^ The excess Oxites are necessary in order to limit the temperature of the mixture, however they can be substituted with other inert gasses.

Gaseous Fueling[edit]

A basic ice crushing, gas collection and measuring setup

In this setup fuel is pumped into the furnace from either pre-measured canisters or pumped into the furnace in measured amounts. Fuel can be either a 2:1 Volatile to O2 mixture, raw gases from Volatile and Oxite ices, or Superfuel. Raw gases can be collected by putting Volatile Ice and Oxites into an Ice crusher, or by melting the gases in an enclosed area and pumping the gases into a canister with an active vent. Superfuel can be made by collecting N20 and mixing it with Volatiles at a 1:1 Ratio. Raw gasses made from ices will have a ratio of 3.6% Nitrogen, 32.7% Oxygen, and 63.7% Volatiles, and the Volatile to Oxygen ratio will be 1.95:1 instead of 2:1, but it will burn adequately well.

Canister Pressure @ 0°C Gases Ingredients Temperature Pressure Alloy
    3,600 KPa
Fuel


62.7 Mols Volatiles
32.1 Mols Oxygen

50
Silver Ore
50
Cobalt Ore
100
Silicon Ore
1.84 kK 15.2 MPa
50
Stellite
(2x) 8,400 KPa
Fuel


286 Mols Volatiles
146 Mols Oxygen

100
Gold Ore
50
Nickel Ore
50
Steel Ingot
1.75 kK 24.1 MPa +++
50
Inconel
(3x) 7,225 KPa
Fuel


371 Mols Volatiles
190 Mols Oxygen

100
Steel Ingot
50
Copper Ore
50
Cobalt Ore
1.89 kK 30.8 MPa
50
Astroloy
    8,500 KPa
Fuel



 (8x) 8,600 KPa
Pressurant
146 Mols Volatiles
74.8 Mols Oxygen

1,900 Mols Pressurant ^^^
100
Silver Ore
50
Nickel Ore
50
Cobalt Ore
1.02 kK 27.6 MPa
50
Hastelloy
 (3x) 7,333 KPa
Fuel



(24x) 9,750 KPa
Pressurant
376 Mols Volatiles
192 Mols Oxygen

6,800 Mols Pressurant ^^^
100
Lead Ore
50
Silver Ore
50
Nickel Ore
683 K 51.4 MPa
50
Waspaloy

+++ For Inconel the mixture pressure will overshoot the range slightly, either make the alloy when the pressure rises into the range, or a short wait will be necessary in order for the pressure to drop back into range.

^^^ These recipes use CO2 @ 0°C as a pressurant. Other pressurants such as Nitrogen, Pollutants, and Oxygen are possible, but they may result in different outcomes.

Fuel mixing[edit]

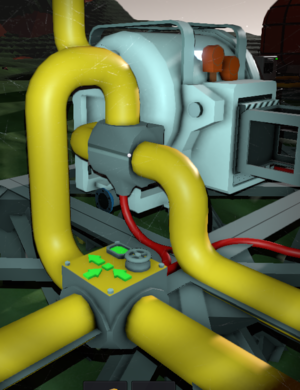

rudimentary setup for mixing H2, O2, and dilutant

In this setup, the furnace's input is connected to a gas mixer to provide fuel, and often a dilutant (used to increase the pressure without spending extra fuel). The Furnace temperature and pressure math article contains formulas useful for crafting recipes to hit temperature and pressure targets.

Hot and cold mixing[edit]

This setup involves a hot tank and a cold tank of gasses, which are then mixed to achieve a target temperature and pumped in to achieve the target pressure. On most worlds maintaining a cold tank is quite easy (because the atmosphere on most worlds is below the temperature needed to smelt ore). Maintaining a hot tank is a little trickier, and either involves a lot of energy spent on Pipe Heaters, or an auxiliary furnace to combust fuel and pipe the exhaust into an insulated tank. Another easier option is to have the entire setup, furnace, pipes and tanks, in an enclosed vacuum chamber, so heat remains in the gases. Note that the outside atmosphere on worlds with no air doesn't count, it must be an enclosed chamber with all air pumped out
  1. [1], The BFF, Bottle Fed Furnace.
