AIMEe

From Unofficial Stationeers Wiki

Robot
Stacks 1
Recipe
Created With Electronics Printer MK2
Cost 5g Gold, 5g Copper, 22g Steel, 15g Electrum, 7g Invar, 8g Constantan, 10g Astroloy

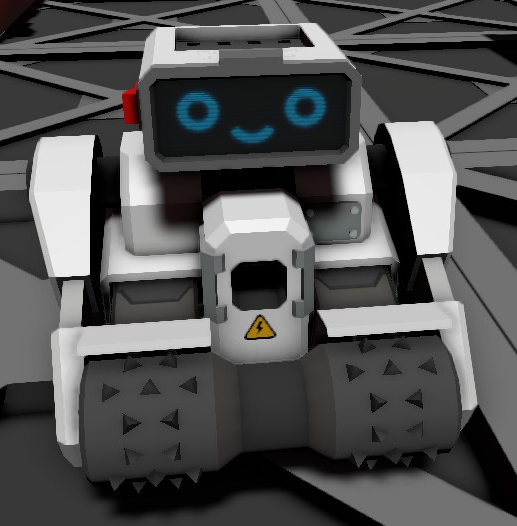

AIMEe or Automated Independent Mechanical Entity is a small mining robot that can be automated to search, mine and retrieve ores.

Robot
Operation
Power Usage Unknown
Construction

Data Network Properties[edit]

These are all Data Network properties of this device.

Data Parameters[edit]

These are all parameters, that can be written to with a Logic Writer, Batch Writer, or Integrated Circuit (IC10). The outputs are listed in the order a Logic Writer's "VAR" setting cycles through them.

Parameter Name Data Type Description
TargetX Set the target for Mode RobotMode.PathToTarget & RobotMode.MoveToTarget
TargetY Set the target for Mode RobotMode.PathToTarget & RobotMode.MoveToTarget
TargetZ Set the target for Mode RobotMode.PathToTarget & RobotMode.MoveToTarget
Mode 0-6
On
  • robot. RobotMode.None = 0
    Do nothing
  • RobotMode.Follow = 1
    Follow nearest player
  • RobotMode.MoveToTarget = 2
    Move to Target in straight line
  • RobotMode.Roam = 3
    Wander around looking for ores in 15 coords radius
  • RobotMode.Unload = 4
    Unload in chute input or chute bin within 3 meters \ 1.5 large grid
  • RobotMode.PathToTarget = 5
    Path(find) to Target
  • RobotMode.StorageFull = 6
    Automatic assigned state that will show when storage slots are full (not stacks)</code>

Data Outputs[edit]

These are all parameters, that can be read with a Logic Reader or a Slot Reader. The outputs are listed in the order a Logic Reader's "VAR" setting cycles through them.

Output Name Data Type Description
PressureExternal Read external pressure in Pascal
TemperatureExternal Read external temperature in Kelvin
PositionX Read current position
PositionY Read current position
PositionZ Read current position
VelocityMagnitude
VelocityRelativeX
VelocityRelativeY
VelocityRelativeZ
Mode 0-6
Power
Error
On

Data Slots[edit]

These are all parameters, that can be read with a Slots Reader. The outputs are listed in the order a Slots Reader's "VAR" setting cycles through them.

Number Name Description
0 Battery
1 IC10
2-9 Storage Internal storage slots.


Name Data Type Description
Battery Slot 0
Occupied Boolean Returns whether the slot occupied. (0 for no, 1 for yes).
OccupantHash Integer Returns ItemHash of item in slot.
MaxQuantity Integer Max Size of stack.
Damage Integer Item durability in percent.
Class Integer Item class ID.
Quantity Integer Size of stack.
ChargeRatio Integer Ratio of charge 0-1.
Charge Integer Charge in joules.
PrefabHash Integer Returns ItemHash of item in slot.
Name Data Type Description
IC10 Slot 1
Occupied Boolean Returns whether the slot occupied. (0 for no, 1 for yes).
OccupantHash Integer Returns ItemHash of item in slot.
MaxQuantity Integer Max Size of stack.
Damage Integer Item durability in percent.
Class Integer Item class ID.
Quantity Integer Size of stack.
PrefabHash Integer Returns ItemHash of item in slot.
Name Data Type Description
Inventory Slot 2-9
Occupied Boolean Returns whether the slot occupied. (0 for no, 1 for yes).
OccupantHash Integer Returns ItemHash of item in slot.
MaxQuantity Integer Max Size of stack.
Damage Integer Item durability in percent.
Class Integer Item class ID.
Quantity Integer Size of stack.
PrefabHash Integer Returns ItemHash of item in slot.
