Due to the frequency of game updates, all solutions are subject to change and may or may not be functional.

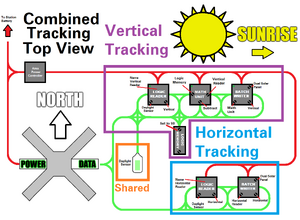

Ecliptic Solar Tracking[edit]

Author: Eearslya, Neouni, 𝕽𝖘𝖆𝟗𝟕 and everyone of the #logic-circuit-discussion
Stationeers Version: 0.1.1510.7155 and up
Number of Components: 10

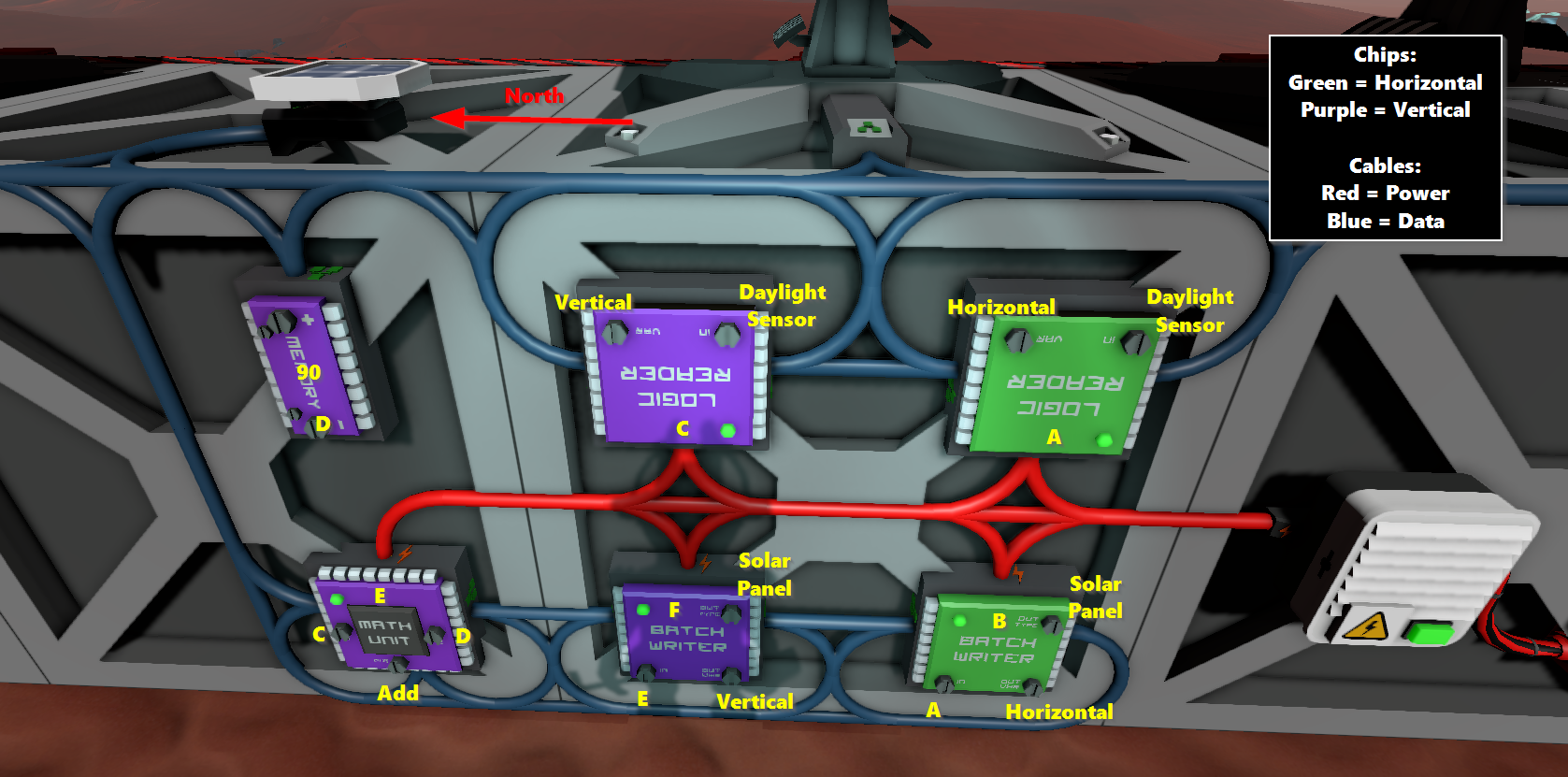

This setup takes advantage of the new Horizontal Mode of the Daylight Sensor, and as such, is a very compact setup. It provides 99% efficiency during the day, only dropping below when the sun is beyond the solar panel's vertical range (less than 15 degrees above the horizon).

To set the second sensor into Horizontal mode, you will need to use a Logic Writer and a Logic Memory. Set the Memory to 1, and set the Writer to write to the Daylight Sensor's Mode variable. Once the mode is written to the sensor, you can deconstruct and re-use the I/O and Memory units. They do not need to be left in place to keep the mode set.



  • Sensor 1: MUST be facing upwards, Mode 0 (Default)
  • Sensor 2: MUST be facing up-side-down, rotated so the power input is facing north, Mode 1 (Horizontal)
  • Don't forget to write the mode to Sensor 2 once written it will remember it

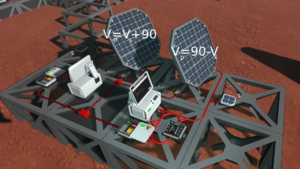

We use specific rotations for the daylight sensor and solar panels in this setup to save a Logic Math and a Logic Memory. Refer to this table below to see how your daylight sensor and panels should be rotated. (Note: Sunrise is in the East.)

If the solar panel's power connector points: West North East South
Then rotate Sensor 2's power input: North East South West

Credit for alternatives: PoolSharkFOG

This setup can be also programmed in an IC10 chip which saves power because you need only 5 chips instead of 8.

1 IC10 Chip plus IC housing
2 sensors setup as shown above
2 memory
2 Batch Writers that read from memory

Connect Sensor1 to d0, Sensor2 to d1, Memory1 to d2, Memory2 to d3. BatchWriter Horizontal should read from Memory1 and BatchWriter Vertical should read from Memory2 and both ofcourse write to the solar panels. Use the same setup for the power connector directions as shown above. You do not have to write the mode, this is done in code.

Here is the code for the ic10 chip: Simulator @

Accurate Solar Setup[edit]

Authors: Wooodiii, Corvus_bkgk, Enfantcool, Baksch
Properties: Accurate (average error 1.3°), Auto-reset (variant), Power conserving (variant)
Number of Components: 10-12
Math Formula: f(x) = min((x-min(x,15))/1.5, 100) where x is the solar angle.

Note: With the introduction of ecliptic solar angles, this setup no longer works at peak efficiency on worlds such as Mars and Europa which have the sun at an angle. This setup will still work on the Moon and in Space.

This setup is accurate, giving 495-500W throughout the day, with lower output only when the sun is lower than the panels can physically aim at.

This setup adjusts for the fact that solar panels rotate through only 150 degrees. Instead of converting using 180/100, this setup converts by doing 150/100. It then clips the value at the edges, where the prior calculation would give elevations that are negative or greater than 100 (representing the fact that we would prefer the panel to track past 0 or 100, aiming all the way down to the horizon instead of stopping 15° short). The listed average error is nonzero only because of this completely unavoidable portion; the error is 0 throughout the 15°-165° portion of the day.

This setup produces the equivalent of 274W averaged over a whole day/night cycle.

Link to IC Programm : [1]


  • The Daylight Sensor should face the sunrise.
  • Solar panels should be rotated such that 0% vertical faces the sunrise.

Component (Name) Settings Explanation
Logic Reader (A) Daylight sensor, Solar angle Sun's angle above the horizon
Memory (15) 15 True angle of solar panels at 0 elevation
Memory (1.5) 1.5 150/100, the conversion constant from solar angle (range:15-165, i.e. 150) to panel elevation (range:0-100)
Min/Max Unit (B) min(A,15) Adjustment amount: 15, unless that would take A-B negative, in which case only enough to reach 0 (low edge case). Equivalent to min(A-B,0) but doesn't require storing 0.
Math Unit (C) A-B Adjusted solar angle
Math Unit (D) C/1.5 Conversion from solar angle to panel elevation
Memory (100) 100 Maximum possible panel elevation
Min/Max Unit (E) min(D,100) Cap elevation to 100 for solar angles past 165° (high edge case). Equivalent to doing min(A-B,165) before step D, but 100 is easier to set in memory than 165.
Batch Writer E -> Solar panels, Vertical angle Send elevation to solar panels

Accurate Solar Control.png

Auto-Reset Variant[edit]

For panels that automatically reset their facing upon sunset, use two more components, and adjust the final min/max unit:

Component (Name) Settings Explanation
Logic Reader (L) Daylight sensor, Activation 1 while daytime, 0 while nighttime
Math Unit (F) 100*L Maximum panel elevation, now 100 during day and 0 at night
(from above) Min/Max Unit (E) min(D,F) Adjusted panel elevation (high edge adjustment)

Power-Conserving Variant[edit]

To conserve power, it's possible to avoid running the entire circuit at night. A transformer can be controlled to power the main logic network above. In this way, only the two new components need to remain powered at all times.

Component (Name) Settings Explanation
Logic Reader (L) Daylight sensor, Activation As in the auto-reset variant above
Logic Writer L -> Transformer, On Transformer powers main logic network

Easy/Compact Solar Setup[edit]

Author: Evie
Stationeers Version: 0.1.1068.5451
Properties: Simple, Inaccurate (Average error: 7.5°)
Number of Components: 5

Note: With the introduction of ecliptic solar angles, this setup no longer works at peak efficiency on worlds such as Mars and Europa which have the sun at an angle. This setup will still work on the Moon and in Space.

This imperfect setup is a common starting point. It starts off at 375w of power in the morning, builds up to 500w at zenith (noon) then back to 375. This is due to the fact that solars rotate through only 150 degrees of elevation and that this setup's math is correct only if they rotated through all 180 degrees of solar angle.

This setup produces the equivalent of 239W averaged over a whole day/night cycle.


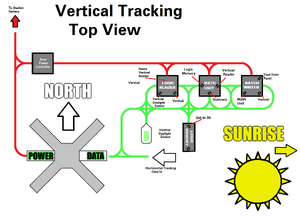

Solar Setup Diagram

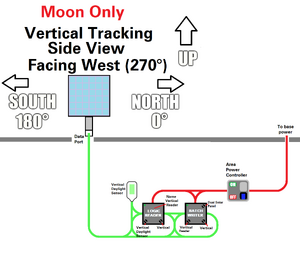

A super compact version


  • The Daylight Sensor MUST be facing West (sunrise), but its rotation doesn't matter.
  • Solar panels should be rotated such as that 0% VERTICAL rotation faces west/sunrise, and 100% VERTICAL faces east/sunset.
  • The Area Power Control is necessary for the circuit to stay powered during the night. It also hides all the modules from the rest of your system.
  • Importantly, the solar input power doesn't directly connect to any of the logic writers. This not only ensures your system doesn't lose power but also prevents short-circuiting that would burn cables.
  • Using 1.7 instead of 1.8 reduces the average error of this design to 6.5° and increases overall power generation, particularly in the afternoon.
