Always-on circuit guide
From Unofficial Stationeers Wiki
This circuit will check a device - in this example a Wall Light - and restart it, if it will shut down / deactivate for a reason.

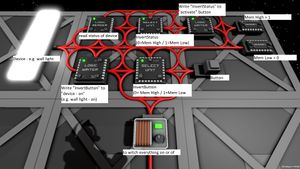

Full Visual with Settings
Trivia[edit]
- This little thing was invented by user "Simoyd" in discord-chat "logic-ciruit-discussion" and needed and created by user "Raumfahrtdoc"
- This is super useful to restart the Kit (Gas Generator) / Gas Generator
Improved version[edit]

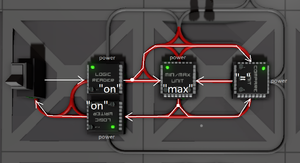

Using the new Min/Max Unit as an OR gate and Compare unit as a (controlled) NOT gate, a much cheaper version is possible. Basically, it is a controlled clock that only runs when the device is off and otherwise stays at 1. The circuit can also be modified easily to make an always-off circuit (e.g. to auto-close doors), see table below.
| Unit name | Unit type | Connector / Setting | Source / Value |
|---|---|---|---|
| reader | Logic Reader Unit | IN | device (whatever you want to control) |
| VAR | On (Open for a door or switch) | ||
| max | Min/Max Unit | OPR | Greater (Less for an always-off-circuit) |
| 1 (input 1) | reader | ||
| 2 (input 2) | compare | ||
| compare | Compare Unit | OUT | Equals (NotEquals for an always-off-circuit) |
| 1 (input 1) | reader | ||
| 2 (input 2) | max | ||
| writer | Logic Writer | IN | max (compare will also do) |
| OUT | device (whatever you want to control) | ||
| OUT VAR | On (Open for a door or switch) |
