OR Gate[edit]

Since the advent of the Min/Max Unit, OR and AND gates are actually extremely simple: just can use MAX for OR and MIN for AND.*


So the OR gate becomes a single Min/Max Unit with the following setup:

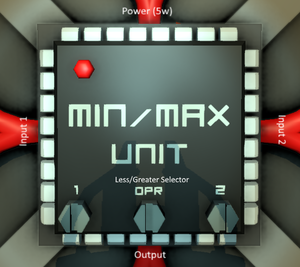

Logic Processor Variation: Min/Max Unit

Connectors[edit]

  • Top: Power
  • Left: Input 1
  • Right: Input 2
  • Bottom: Output

Screws (options)[edit]

  • Bottom Left: Input 1 Selector. Click with screwdriver to select the "left" operand
  • Bottom Right: Input 2 Selector. Click with screwdriver to select the "right" operand
  • Bottom Center: Operation Selector. Click with screwdriver to select "Greater"

Notes[edit]

*) Note: (If you use numbers for TRUE and FALSE satisfying TRUE > FALSE, e.g. the popular choice of TRUE = 1 and FALSE = 0 satisfies 1 > 0. Otherwise, use MIN for OR and MAX for AND).
